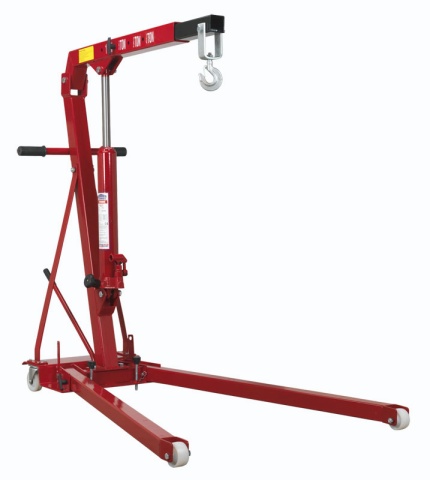

FOLDING ENGINE CRANE 1TONNE LOW
PROFILE
* Lifting Capacity Position 1:
1000kg
* Lifting Capacity Position 2:
750kg
* Lifting Capacity Position 3:
500kg
* Lifting Capacity Position 4:
250kg
* Max. Lift Ht at Max. Jib Ext.
Position 1: 1885mm
* Max. Lift Ht at Max. Jib Ext.
Position 2: 1980mm
* Max. Lift Ht at Max. Jib Ext.
Position 3: 2050mm
* Max. Lift Ht at Max. Jib Ext.
Position 4: 2080mm
* Length of Jib Position 1: 945mm
* Length of Jib Position 2:
1035mm
* Length of Jib Position 3:
1120mm
* Length of Jib Position 4:
1220mm
* Length: 1700mm
* Rear Width: 500mm
* Width Inside Front Frame: 890mm
* Width Front Frame: 1020mm
* Height Legs Folded: 1420mm
* Height of Frame: 80mm
|
|
| |
|
|
